Laboratory Glassware Technical Information

Key specifications for SGC LABS® laboratory glassware by Scientific Glass Creations: glass properties, fritted glass porosity, filter paper grades, round bottom flask sizes and taper joint dimensions.

1

Glass properties

Typical physical properties of the borosilicate glass used in SGC LABS® laboratory glassware.

  • 560 °CAnnealing point
  • 820 °CSoftening point
  • 32×10−7/°CLinear coefficient of expansion
  • 1.47Refractive index

SGC LABS® glassware by Scientific Glass Creations meets ASTM E438, Type I, Class A (where applicable), "Standard Specification for Glasses in Laboratory Apparatus".

2

Fritted (sintered) glass porosity

Choose the porosity by the particle size you need to hold back. Smaller pores filter finer, but more slowly.

PorosityCodeNominal max. pore size (µm)Typical applications
CoarseC40 – 60
  • Filtration of coarse materials
  • Gas dispersion, gas washing, gas absorption
  • Mercury filtration
  • Extraction apparatus
MediumM10 – 15
  • Filtration of crystalline precipitates
  • Removing "floaters" from distilled water
  • Extraction apparatus
FineF4 – 5.5
  • Filtration of fine precipitates
  • Mercury valves
  • Extraction apparatus

Shop: sintered glassware

3

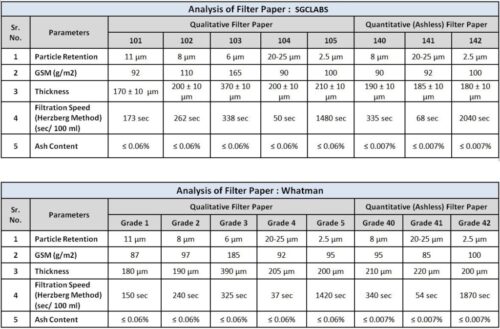

Filter paper grades

SGC LABS® qualitative and quantitative (ashless) filter papers, with the equivalent Whatman grade for easy comparison.

SGC LABS® gradeEquivalent Whatman gradeParticle retentionGSM (g/m²)Thickness (µm)Filtration speed*
(sec / 100 ml)
Ash content
Qualitative filter paper
101Grade 111 µm92170 ± 10173≤ 0.06%
102Grade 28 µm110200 ± 10262≤ 0.06%
103Grade 36 µm165370 ± 10338≤ 0.06%
104Grade 420 – 25 µm90200 ± 1050≤ 0.06%
105Grade 52.5 µm100210 ± 101480≤ 0.06%
Quantitative (ashless) filter paper
140Grade 408 µm90190 ± 10335≤ 0.007%
141Grade 4120 – 25 µm92185 ± 1068≤ 0.007%
142Grade 422.5 µm100180 ± 102040≤ 0.007%

* Herzberg method. Whatman is a trademark of its owner; grades are listed only to show equivalence. SGC LABS® is not affiliated with Whatman.

4

Round bottom flask sizes

Outside diameter of SGC LABS® round bottom flasks by nominal capacity.

5 mL to 300 mL

Small flasks
Capacity (mL)Diameter (mm)
525
1031
1535
2038
2542
5048
10060
12565
20076
25083
30087

500 mL to 72 L

Large flasks
Capacity (mL)Diameter (mm)
500102
1,000130
2,000161
3,000185
5,000221
6,000236
10,000279
12,000295
22,000350
50,000457
72,000520

Shop: laboratory flasks

5

Interchangeable taper joint dimensions

Standard full, medium and short length taper-ground joints (1:10 taper). All dimensions in mm. For ISO 383 'B' length joints and how to read a joint size, see our jointed glassware guide.

Full length

Longest ground zone
JointSmall end ØLengthLarge end Ø
7/255257.5
10/3073010.0
12/309.53012.5
14/35113514.5
19/38153818.8
24/40204024.0
29/42254229.2
34/45304534.5
40/50355040.0
45/50405045.0
50/50455050.0
55/50505055.0
60/50555060.0
71/60656071.0
103/609760103.0

Medium length

Mid-size ground zone
JointSmall end ØLengthLarge end Ø
5/123.8125.0
7/156.0157.5
10/188.21810.0
12/1810.71812.5
14/2012.52014.5
19/2216.62218.8
24/2521.52524.0
29/2626.62629.2
34/2831.72834.5
40/3536.53540.0

Short length

Shortest ground zone
JointSmall end ØLengthLarge end Ø
7/106.5107.5
10/109.01010.0
14/1013.51014.5
24/1222.81224.0
29/1228.01229.2
34/1233.31234.5
40/1238.81240.0
45/1243.81245.0
50/1248.81250.0
55/1253.81255.0
60/1258.81260.0
71/1569.51571.0

Joints with the same first number share the same large-end diameter and 1:10 taper, so full, medium and short length joints of that size fit together; only the length of contact changes.

?

Frequently asked questions

What standard does SGC LABS® laboratory glass meet?

SGC LABS® glassware meets ASTM E438, Type I, Class A (where applicable), the standard specification for glasses in laboratory apparatus.

What are the annealing and softening points of the glass?

The annealing point is 560 °C and the softening point is 820 °C. The linear coefficient of expansion is 32 × 10−7 per °C and the refractive index is 1.47.

Which fritted glass porosity should I choose?

Coarse (40–60 µm) for coarse materials and gas dispersion, medium (10–15 µm) for crystalline precipitates, and fine (4–5.5 µm) for fine precipitates.

Which SGC LABS® filter paper matches Whatman Grade 1?

SGC LABS® grade 101 matches Whatman Grade 1 (11 µm retention). Grades 102 to 105 match Grades 2 to 5, and ashless grades 140, 141 and 142 match Grades 40, 41 and 42.
